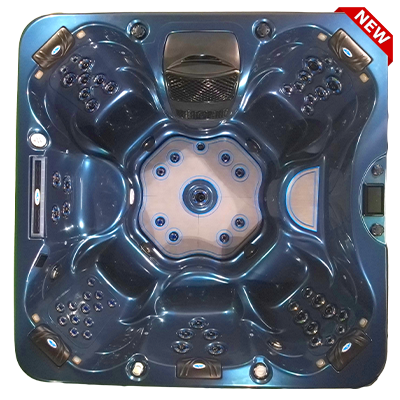

Name: Carmel CS-PL-893B
Brand: Cal Spas
SKU: PL-893B
Availability: InStock

Product Description
How To Operate
Specifications
Standard Colors
Upgrade Options
Documents

Cal Spas Fountain Of Youth™

Fountain Of Youth™ is a new patented hydrotherapy that rejuvenates your body and skin, making you look younger and feel better. The gentle effervescent sensation and silky feel of the water are signs that your body is benefiting from the super saturated water filled with billions of oxygen rich micro-bubbles.

Oxygen-Rich Bath

Increases the oxygen levels in the spa by up to 70 percent. Oxygen naturally improves the collagen production in your skin, which reduces signs of aging

Fountain Of Youth Video

Fountain of Youth™ hot tubs by Cal Spas are exclusively equipped with revolutionary BEAUTY treatment in a new form of HYDROTHERAPY.

Hydro-Massage Therapy Benefits

There are many benefits to improving your mind and body with each spa manufactured. Customize your Hydro-Massage therapy to meet your goal to a healthier better you.

Seats

Enjoy form fitted seating as you immerse yourself in a hot tub full of jets designed to provide a superior hydrotherapy massage.

*Seats vary by model

Jets

Strategically placed to hit exact pressure points, which will allow your muscles to decompress. Jets are adjustable at your convenience.

Exclusive ATS Seat Plus

Our patented ATS Plus seat features a dedicated motor and control panel that allows you to personalize your massage to nine distinctive pressure levels.

Ultimate Performance

Cal Spas prides itself on 100% custom built American-made Spas. We are dedicated to building the most reliable, durable and functional spa in the industry.

Pumps

Cal Spas builds the most reliable motors in the industry. With less moving parts, these motors feature a one speed operation for maximum performance. Our pumps are Built to last a lifetime!

Heater

The Whisper Hot Titanium Element in calcified Tube Titanium has become the solution to hot tub heater longevity, and has long been the best defense against chemical & mineral abuse.

Controls

Our control panel is a touch screen to make it easier to control your settings to your spa right at your fingertips.

Purity

It is necessary that the water in your spa stays purified, and with our filtration system, we make it easy for you.

Ozone

Using Dual Ozonators with Mazzei Injectors Mixing Chambers, it kills microorganisms and prevents them from reproducing. No chemicals are added to the water, and won't interfere with the oxidation process.

Bio-Filter

A special Dyna Flow Filter System bacteria-fighting agent is molded into the fabric of the filter and prevents harmful microbes and bacteria from reproducing.

Efficiency Insulation

Our insulation is the best on the market. We have it down to a science for you to keep your spa protected and the heat locked in and ready to use at any time!

Thermo-Shield

Our cabinet walls contain premium insulation that is completely recyclable producing less waste than traditional urethane foam. Additionally, the insulation does not block passage to the spa allowing for the highest R rating.

Full Foam

By adding full foam into the spa structure, water is preserved so the heat does not release. This will reduce the time that it takes to heat and maintain water temperature.

*Optional Feature

Cabinet

Each cabinet is designed to provide maximum support for every spa. Match your favorite shell color with eye-catching panels available in select colors.

Strength Starts Underneath

With a strong foundation our spas are built to last.

Fiber Steel

How a Spa shell is built determines everything from longevity to durability to withstand every outdoor element. Cal Spas Patented 5-layer laminate design incorporating reinforced steel and wood is the strongest in the industry. Cal Spas Fiber steelTM process has proven to lead the industry in shell design, efficiency and performance.

Frame

Our cabinet frames are treated to resist rot, corrosion and insects. Constructed using 1" galvanized steel fasteners, corner gussets, and vertical angle bracings for added beam support.

Plumbing

This VGB Approved safety break feature automatically reduces pump suction in the event of an obstruction or intake blockage.

Foam

This high-density foam is added to support the plumbing underneath so nothing gets out of place

Life Pleasures

To be in a spa feels great, add the extra, then it becomes perfect!

Water Feature

Enjoy the sound of a Cascading Waterfall while multi-colored LED lights stream a sequence of vibrant colors.

Sound System

Includes Bluetooth, Powered Subwoofer and Cube Speakers. Bluetooth technology lets you control your music through your smart device from anywhere inside, or outside your Cal Spas Hot Tub.

Ergonomics

Relax your head and neck with this soft, smooth and super-comfy spa pillow !

WI-FI

Using Wi-Fi allows you to control your spa from anywhere in your home. Turn your spa on and off with ease. Control your filter cycles, the temperature and the pumps. You choose!

*Optional Feature

WI-FI Upgrade

Upgrade to Wifi Connect. This innovative feature leverages the power of your home’s Wi-Fi network, granting you remote access to control your spa anytime, from anywhere within your connected environment.

Interior Lighting

Enhance your spa session in your backyard by turning on contoured headrests with backlit pillows, perimeter LED lighting, LED Velocity™ Valves, and LED cup holders.

#	Specification	Value
1	Seating Capacity	6
2	Shell Color	Deluxe Colors
3	Dimensions (W x L x H)	93" x 93" x 44"
4	Dry Weight - Lbs. (Kilograms)	900 (408 kg)
5	Filled Weight - Lbs. (Kilograms)	4,650 (2,109 kg)
6	Water Capacity - Gal. (Liters)	450 (1,703 L)
7	Eliminator High Performance ™ Pump BHP = Brake Horsepower	3 x 6.0 BHP
8	Exclusive Adjustable Therapy System Plus™ (ATS Plus)	1 x 2.0 BHP (1 x 1.0 HP)
9	24/7 Filtration System	Yes
10	Operating Voltage	240V
11	Exclusive Velocity Jets	93
12	Water Features	LED Waterfall
13	Pillow(s)	Y-Pillows(4)
14	Gate Valve(s)	Yes
15	Air Venturi Valve	Yes
16	Twin Pure Silk™ System Dual Ozonators with Mazzei Injectors and Mixing Chambers	Yes
17	Fountain of Youth™ System	Yes
18	Cal Salt Filtration System	Yes
19	Freedom™ Sound System Bluetooth, Powered Subwoofer and (6 in Lounger / 8 in Bench) speakers	Yes
20	Dyna Flow Filter System: Bio-Clean Filter™ Molded Dual Filter Lid with (4) LED Lights	150 Sq. Ft.
21	LED Spa Lighting	5" Multi-Color LED
22	Perimeter LED Lighting	Yes
23	Whisper Power Unit™ Equipment with Full Color Cal-Spa Touch4™ Panel and Auxiliary	BP501X Cal-Spa Touch4 w/ Auxiliary Panel
24	Thermo-Shield™ Insulation	Yes
25	WhisperHot™ Heating System	5.5 kW Titanium Heater
26	Cal Grip Callection Series	Yes
27	Pressure Treated Cabinet Frame	Yes
28	ELITE Horizontal Cabinet Panels with (4) Beam-Lite LED Corners Colors: Coastal Grey, Mocha	Elite Horizontal
29	Elite II Spotlight 4x Cabinet Corners LED Lighting	Standard
30	Spa Cover: (Weather Shield) Colors: Dark Brown or Grey	4" to 2.5"
31	Warranty (Structural)	10 Years
32	Warranty (Finish)	7 Years
33	Warranty (Equipment)	5 Years
34	Warranty (Plumbing)	5 Years
35	Warranty (Cabinet)	5 Years
36	Warranty (Cover)	3 Years

Acrylic Colors

Sterling Silver

Arctic Blue

Tuscan Sun

Midnight Canyon

Storm Clouds

Glacier Mountain

Smoky Mountain

Cabinet Finishes

Mocha

Grey

Cover Colors

Black

Dark Brown

Grey

Structural	Warranted against spa shell collapse, leaks caused by the shell, or dangers of structural integrity due to defects in the spa shell.	5 Years
Shell Surface	Warranted against spontaneous blistering, cracking, or delaminating of the interior spa shell.	3 Years
Equipment & Controls	Electrical equipment—limited to spa pumps, standard heater, and control system/panels—are warranted against malfunction due to defects in workmanship or materials.	3 Years
Plumbing	Warranted against leaks/cracks due to defects in workmanship or materials.	3 Years
Spa Cabinet	Warranted against defects in workmanship or materials. Normal wear and weathering of the finish will occur naturally over time and are not defects.	3 Years
Sanitation	Salt cells & bromine generators are warrantid against defects in workmanship or materials, including sanitation control panels & electrical.	1 Year
Ozone/UV	Ozone Generators and UV treatment systems are warranted against defects in workmanship and materials. (Excludes UV bulbs older than one year.)	2 Years
LED Lighting	LED lights are warranted against malfunction due to defects in workmanship and materials.	2 Years
Sound System	The Freedom Sound System is warranted against malfunction due to defects in workmanship and materials. This does not cover normal wear and tear.	1 Year
Spa Cover	The spa cover is warranted against malfunction due to defects in workmanship and materials. This does not cover normal wear and tear.	3 Years
